How to Measure System Performance in Distributed Systems

Building a distributed system is only half the battle. Once it’s up and running, a critical question arises: how well is it actually performing? Unlike measuring the performance of a monolithic application running on a single machine, assessing the performance of a distributed system is a multifaceted challenge. It requires a nuanced approach that considers the unique characteristics of these complex architectures. So, how do we effectively measure system performance in the context of distributed systems?

The first step is to define what “performance” actually means for our specific system. This might seem obvious, but it’s a crucial step that’s often overlooked. Are we primarily concerned with throughput, the rate at which the system can process requests or transactions? Or is latency, the time it takes for a single request to be completed, the more important metric? Perhaps scalability, the system’s ability to handle increasing load, is the key concern. Often, it’s a combination of these factors, and understanding their relative importance is essential for choosing the right measurement techniques.

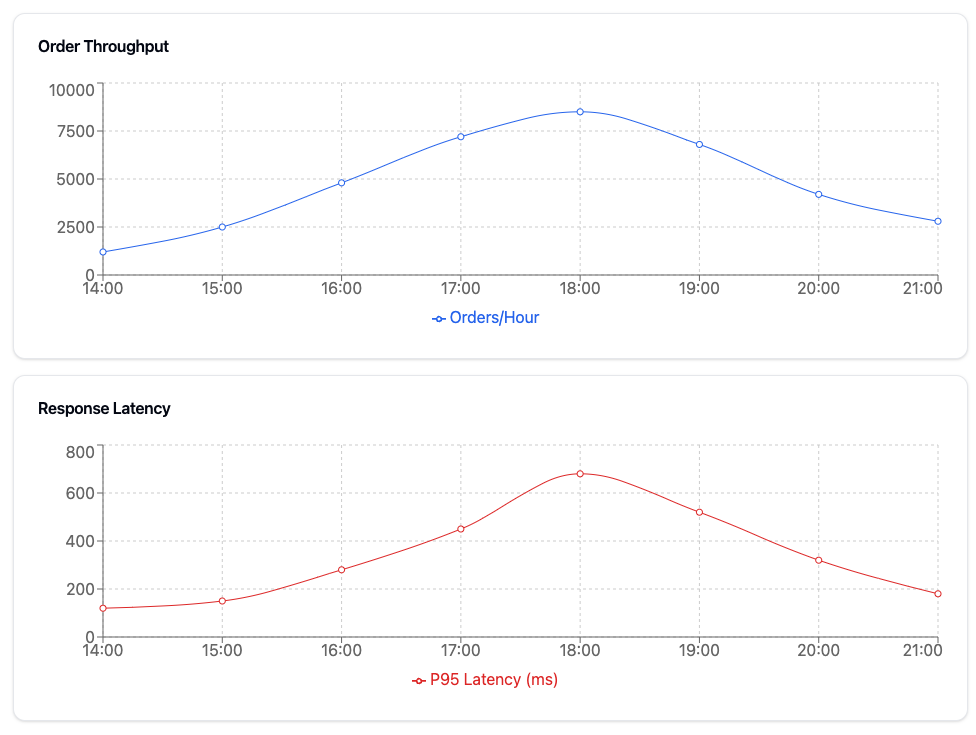

Once we’ve defined our performance goals, we can start to think about specific metrics. For throughput, we might measure transactions per second (TPS), requests per minute (RPM), or the volume of data processed per unit of time. For latency, we often look at percentiles, such as the 95th or 99th percentile response time. This tells us, for example, that 99% of requests are completed within a certain time frame. Focusing solely on average latency can be misleading, as it can mask outliers that significantly impact user experience. Average is a useful metric, but should never be the only metric you consider.

graph LR
    subgraph Latency_Distribution["Response Time Distribution"]
        P50["50th
        95ms"]
        P75["75th
        150ms"]
        P90["90th
        220ms"]
        P95["95th
        280ms"]
        P99["99th
        450ms"]
        P999["99.9th
        750ms"]
    end

    %% Show ideal targets
    T1[/"Target P50
    <100ms"/]
    T2[/"Target P95
    <300ms"/]
    T3[/"Target P99
    <500ms"/]

    %% Connect actuals to targets
    P50 --- T1
    P95 --- T2
    P99 --- T3

    %% Styling
    classDef good fill:#e8f5e9,stroke:#2e7d32,stroke-width:2px
    classDef warning fill:#fff3e0,stroke:#e65100,stroke-width:2px
    classDef critical fill:#ffebee,stroke:#c62828,stroke-width:2px
    classDef target fill:#e3f2fd,stroke:#1565c0,stroke-width:1px

    class P50,P75 good
    class P90,P95 warning
    class P99,P999 critical
    class T1,T2,T3 target

Scalability is a more complex beast to measure. It involves assessing how the system’s performance changes as we increase the load or the resources allocated to it. We might perform load testing, gradually increasing the number of simulated users or requests and observing how throughput and latency are affected. A well-designed distributed system should exhibit near-linear scalability, meaning that doubling the resources should roughly double the throughput, at least up to a certain point. If a system is not scaling in the way you expect, it is important to find out why and solve it.

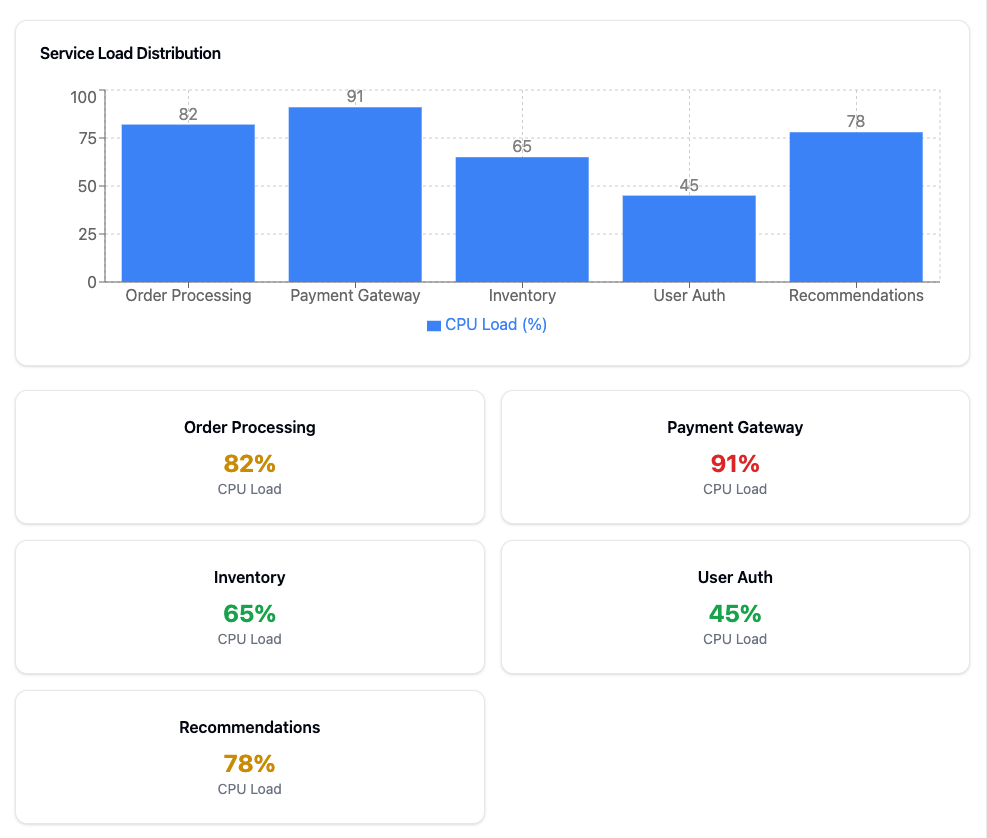

Beyond these core metrics, it’s also important to consider resource utilization. How efficiently is the system using its resources, such as CPU, memory, disk I/O, and network bandwidth? High resource utilization might seem desirable, but it can also be a sign of bottlenecks or inefficiencies. Monitoring resource usage across the different components of the distributed system can help identify areas for optimization and potential problems before they impact overall performance. Don’t just look at averages – a node may be struggling in your system but not impacting the average very much.

graph TD
    subgraph Resource_Dashboard["System Resource Utilization"]
        subgraph CPU["CPU Utilization"]
            C1["Node 1
            65% Used"]
            C2["Node 2
            78% Used"]
            C3["Node 3
            92% Used"]
        end

        subgraph Memory["Memory Usage"]
            M1["Node 1
            72% Used
            28% Free"]
            M2["Node 2
            85% Used
            15% Free"]
            M3["Node 3
            95% Used
            5% Free"]
        end

        subgraph Network["Network Bandwidth"]
            N1["Inbound
            45% Utilized"]
            N2["Outbound
            67% Utilized"]
            N3["Internal
            82% Utilized"]
        end

        subgraph Disk["Disk I/O"]
            D1["Read
            250 MB/s"]
            D2["Write
            180 MB/s"]
            D3["Queue
            Length: 4"]
        end
    end

    %% Styling
    classDef good fill:#e8f5e9,stroke:#2e7d32,stroke-width:2px
    classDef warning fill:#fff3e0,stroke:#e65100,stroke-width:2px
    classDef critical fill:#ffebee,stroke:#c62828,stroke-width:2px

    class C1,M1,N1,D1 good
    class C2,M2,N2,D2 warning
    class C3,M3,N3,D3 critical

Finally, effective performance measurement requires comprehensive monitoring and logging. We need tools that can collect data from all the different components of the distributed system, aggregate it, and present it in a meaningful way. This might involve using specialized monitoring tools, logging frameworks, and distributed tracing systems. The ability to correlate data from different sources is crucial for understanding the root cause of performance issues and identifying areas for improvement.
